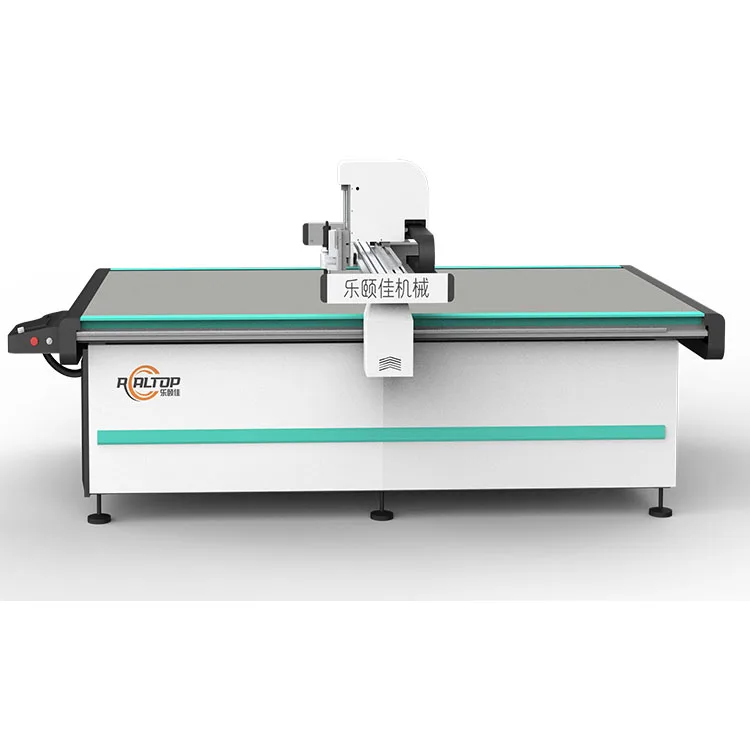

CNC Corrugated Cutter 2026 V-Cut Vibration Knife
$7,000.00
Product Introduction
CNC Corrugated Cardboard Cutting Machine 2026 integrates V-Cut and Vibration Knife technologies for precise, efficient cutting of corrugated materials, ideal for packaging and printing industries.
Key Specifications
| Cutting Type | V-Cut & Vibration Knife |
| Material | Corrugated Cardboard |
| Control System | CNC |
| Year Model | 2026 |
| model number |
RT-D1625 |
|---|---|
| power(w) |
11KW |
Description
Product description
Realtop 1625 vibration knife digital paper processing cutting machine. more stable operating effect. longer service life. better price. more intelligent cutting performance
Used for sticker cutting. cardboard cutting. packaging carton manufacturing. tailor -made new generation of intelligent cutting machine
Free configuration professional carton cutting software. system language support customization Support multiple format file imports. automatically locate cutting. tags. creases Straight guide rail transmission and servo motor drive operations are more stable. and cutting is more accurate Aluminum alloy honeycomb structure vacuum adsorption platform. higher levels. more uniform adsorption Equipped with infrared sensors and emergency stop devices to ensure safety No air pollution. no burnt edges. cutting speed faster than laser cutting 5-8 times the machine
Cardboard materials can be used for the packaging of various products in life after cutting. such as large electrical carton packaging. express paper box packaging. snack food packaging. high -end gift box packaging. and you can intelligently identify and cut various pattern stickers. billboards. business cards. cards Tag. etc.
Automatic positioning cutting
After the cut command conveyed by the receiving system. automatically position the cutting. marking. indentation. and the whole process is fast and orderly.
Imported straight -line square guide
High -precision linear square guide. the cutting process is smoother. improves work efficiency and stability.
Rack transmission
The transmission device with better performance effect makes the cutting process more stable and accurate. and improves the cutting efficiency.
Aluminum alloy vacuum adsorption
Aluminum alloy honeycomb structure vacuum adsorption platform can automatically follow the cutting area adsorption. reduce power consumption. and more flat and uniform material cutting and attached surface.
Professional carton nested software
Provide a variety of functional carton paper box cutting design software for free. customized language. providing lifelong technical service support.
Servo motor
Taiwan Delta Servo Motors and Drivers.more reliable and with higher working accuracy
Product Parameters
Model | RT-D2516/RT-S2516 |
working area | 1600*2500MM |
Machine size | 3450×2300×1250MM |
Rated power | 9kw |
Fixed model | Flated working table |
Multifunctional head | Swiss imported knife: with vibration full cutting. vibration half cutting and cursor location function. |
Safety device | Using infrared sensors. responsive. safe and reliable. |
translational velocity | 800-2000mm/s |
Cutting thickness | 200-800mm/s(according to different cutting materials) |
Cutting materials | Leather. all kinds of clothing flexible material. Sponge composite leather. PVC. soft glass. Silicon. rubber |
Repeated accuracy | ≤0.1mm |
Transmission system | imported (Digital servo motor. linear guide. synchronous belt. ball screw) |
Instruction system | HP-GL compatible format |
Voltage | 380V±10% |
Other configuration | Delta servo motor. Germany imported conveyor belt. vacuum table. auto feeding. Taiwan Hiwin rail. 7.5kw vacuum pump |

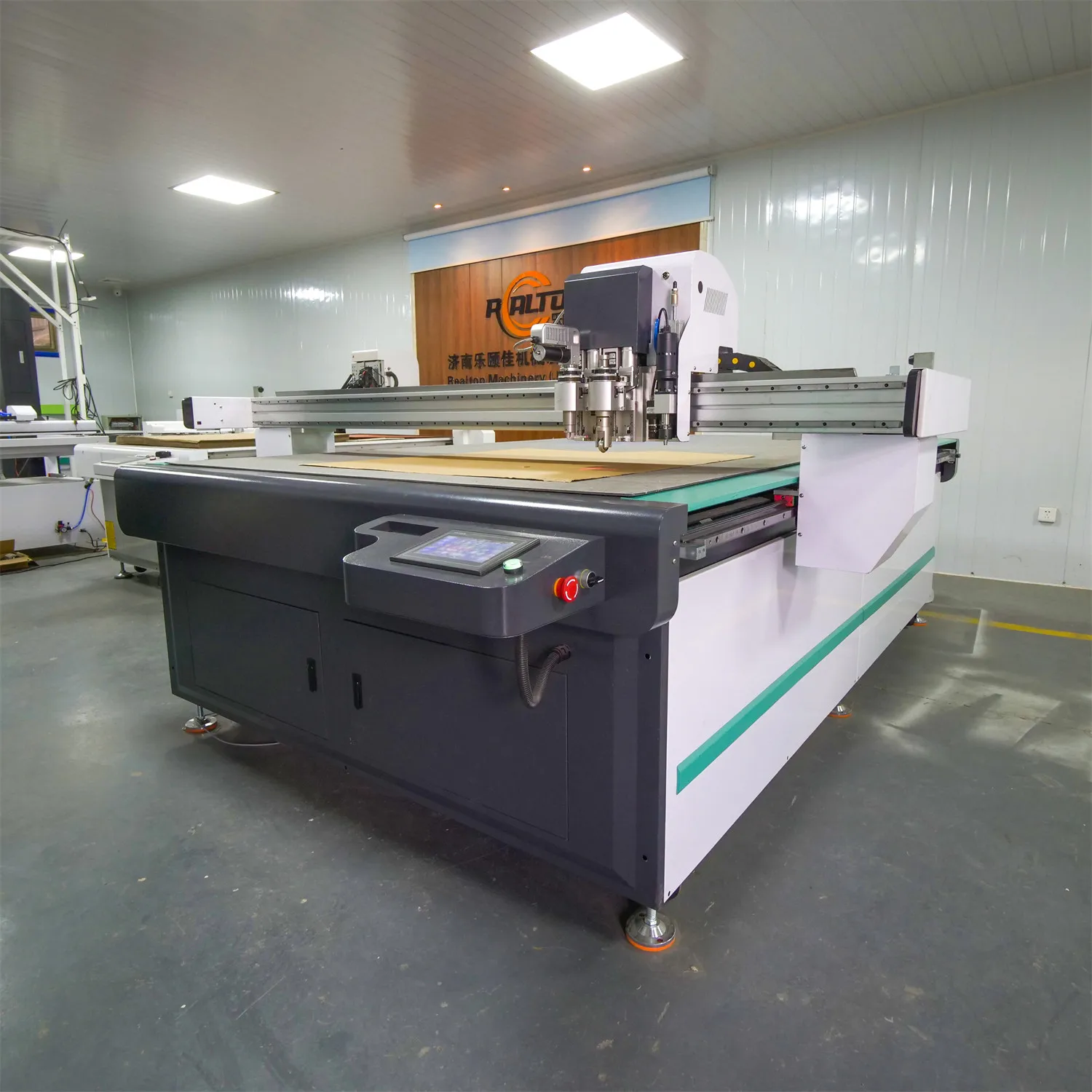

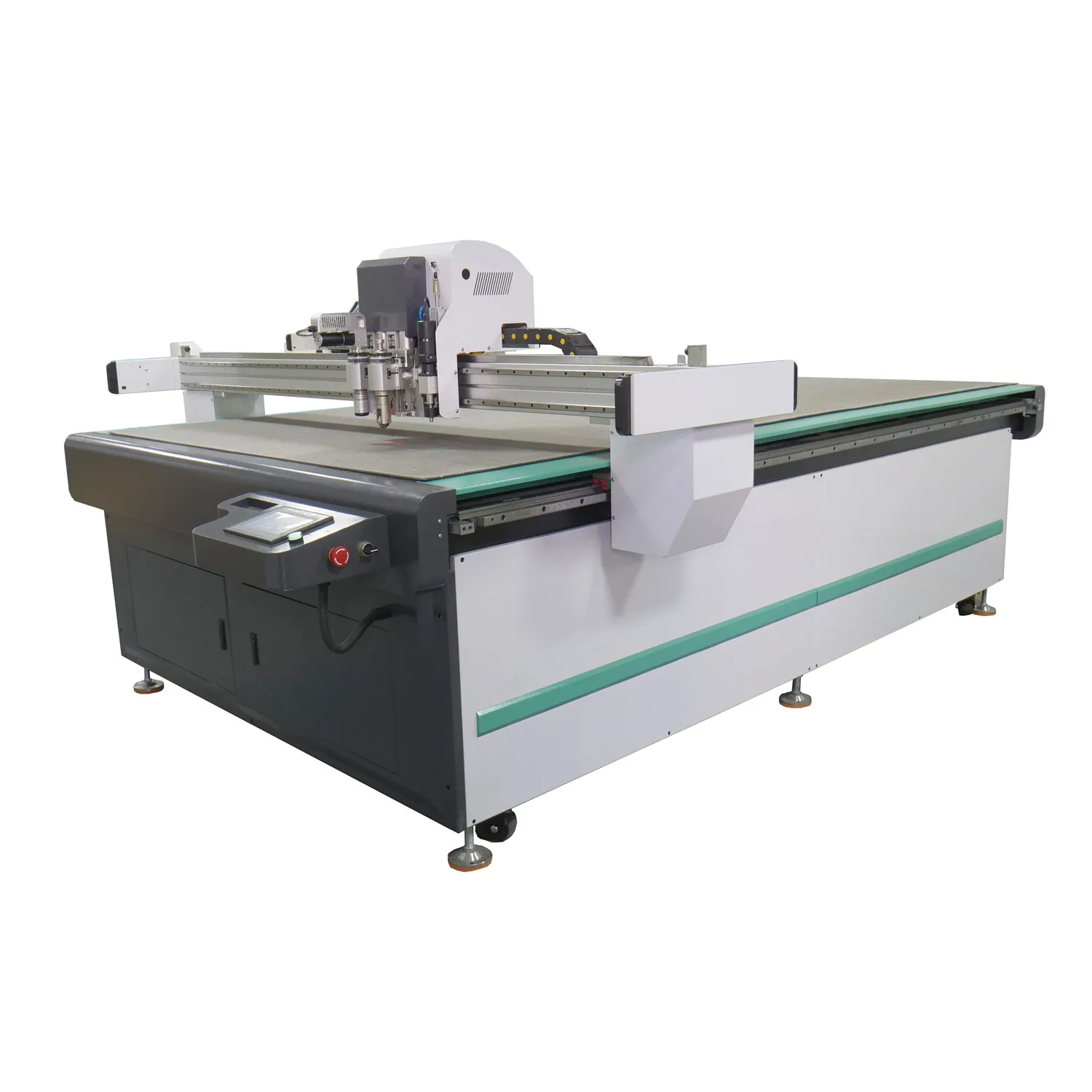

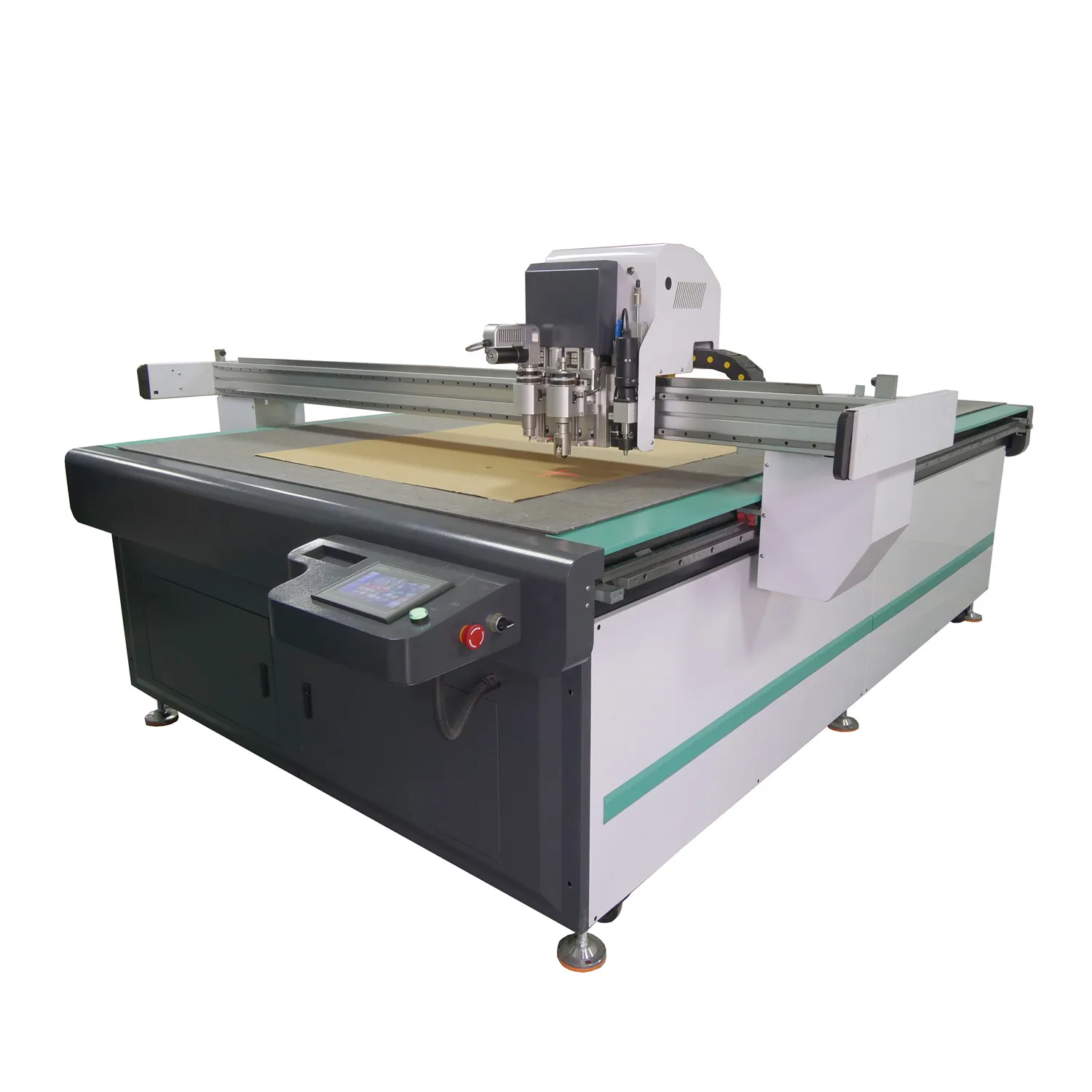

Product Display
Cutting Effect
Company Profile
Realtop Machinery (Jinan) Co..Ltd
Built in 2005. Realtop Machinery (Jinan) Co..Ltd is located in Shandong Province. China. covering an area of more than 20.000 square meters. It is one of the most advanced flexible materials cutting machine manufacturers in China. We have rich experience and enthusiastic design team and strong core factory.As a high-tech enterprise specializing in R&D. production. sales and service of CNC cutting equipment. Realtop CNC Group Company has a group of top talents with rich experience in development and application. With more than 13 years experience. we are focus on digital cutting machines for leather. paper. stickers. foam. carpet and many other flexible materials cutting.RealTop CNC – Always your best solution provider for Cutting and Engraving CNC Machines. And Your visit to our factory is always highly welcomed here.
Service:
1. Pre-sales service——professional technical consultationA. Free sample making For free sample making/testing. please send your samples or product CAD drawings to our company in China. Buy after testing.B. Perfect solution design According to customers' product processing requirements. we can design unique solutions for customers. supporting higher manufacturing efficiency and better processing quality.2. After sales service – professional qualification and trainingWe will provide some parts for free for the first year. The buyer needs to pay for the shipping cost of the parts. Users need to send us the broken picture. then we will send the parts they need.B. In the first year. if buyers need our engineers to come to the local area to solve machine problems that they cannot solve by themselves; we will send our engineers for free. The buyer needs to pay for the engineer's local air tickets. accommodation and meals.C. If buyers need help with any technical issues. we will provide service by email and phone.3. Installation and technical training includeIf necessary. we will send engineers to the customer's factory for local training and installation. which is free of charge. The buyer shall pay for the accommodation and meals of the local engineer.Timely gold service. response to technical support within 24 hours. let you feel at ease.4. Customer-centric maintenance cost control guideA. The supply of accessories is timely. we produce according to the order. more than 30 sets of accessories in stock. guarantee the order delivery and repair.B. Relieve customers' worries about large equipment services; supply parts at bare cost.5. Sales service management systemStandardized service management system. including: customer contact management. customer troubleshooting management. regular maintenance of customer equipment. inspection management. customer file management and parts review. etc.
Why Choose Us
Our Advantage：
1. The machine is equipment with vibrating knife cutting technology. which saves the cost and time of manufacturing. management and storage of cutter. Farewell completely to the traditional manual cutting technology. completely break through the bottleneck of enterprises dependence on skilled workers. and take the lead in the era of digital tool-free die processing.
2. Multifunctional cutting head design. highly integrated multi-group processing tools. can be in a unit of work for interactive cutting. punching. marking. to achieve a one-stop operation.3. Powerful layout and calculation system can achieve automatic layout and accurate calculation. thus accurately calculating costs. accurately controlling material distribution. and truly realizing the digital zero inventory strategy.4. By accurately simulating each operation process by computer. the programmed operation is realized. which eliminates the interference of personal factors such as worker's emotion. technology and fatigue. avoids the hidden waste and improves the material utilization rate.
5. Timely modification of the template can be achieved. saving the time of developing and laying out the board. quickly changing the board. and adapting to the fast and changeable market demand. The same board adjustment can lead your competitors by 2-3 days and help you seize the market opportunity quickly.
FAQ
1: What professional advice can you give me when I need to buy REALTOP digital cutting machine?Please tell us what material you are cutting and the dimensions of the material (width and length). We will recommend a suitable model for you based on your material texture and size.If you can send us some trial cutting materials. we will record the cutting video for your reference. welcome to visit our company and factory if possible. 2: What materials can your machine cut?REALTOP digital cutting machine can cut different kinds of soft materials. Used in different industries such as shoes. bags. clothing. cartons. composite materials. automobiles. and home furnishings.
3: What languages does the software system support?The menu is available in English. Russian. Italian. Chinese. etc. Special languages can be customized.
4: How thick can your machine cut?Our machine can choose different types of cutting tool heads according to the thickness of your different materials to achieve cutting of various materials with different thicknesses. The cutting thickness of the machine is ≤100mm (varies with the material).
5: This is my first time using this machine. Is it easy to operate?We will send you English manual and instruction video. which can teach you how to operate the machine. If you're still having trouble learning how to use it. we can chat by phone. email. or other contact method. Problems caused by incorrect operation will also be well solved.
6: Can the machine be customized according to my requirements?Of course. we have a strong technical team and rich experience. provide ODM and OEM services. we will discuss the details with you. and provide you with professional advice on the machine. to ensure that the machine can meet all your requirements with the best cost performance Our The goal is to satisfy you.
