CNC Flatbed Carton Cutter 2026 Auto High Precision Box Making
$8,500.00
Product Introduction

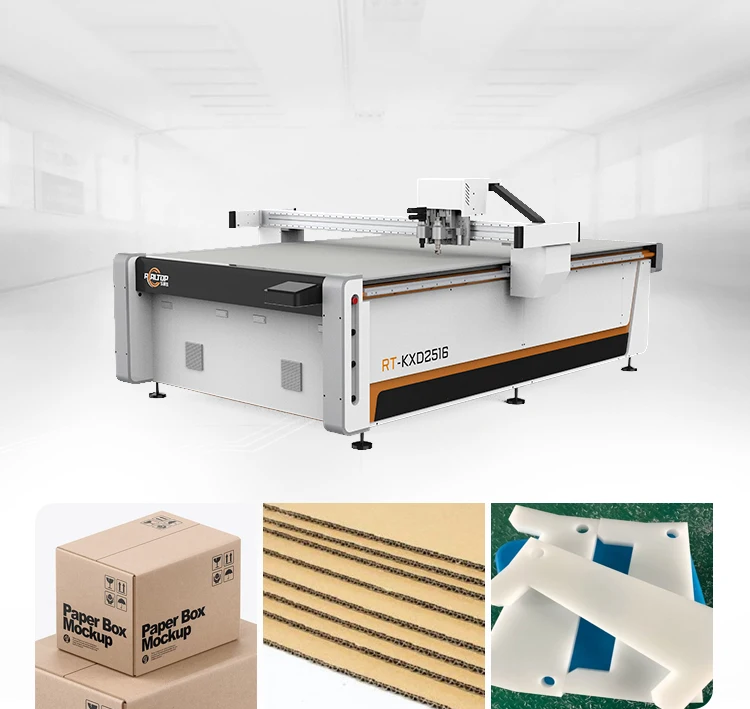

2026 CNC Flatbed Carton Cutter Machine for auto box making with high precision, ideal for efficient carton cutting needs.
Key Specifications
| Type | CNC Flatbed Carton Cutter |
| Function | Auto Box Making |
| Precision | High Precision |
| Model Year | 2026 |
| model number |
RT-D1625 |
|---|---|
| power(w) |
11KW |
Description
REALTOP CNC cutting machine uses a high-precision digital cutting system. which can realize full size cutting. kiss cutting. slot milling. punching. inkjet. drawing marking and other functions; the tool head has a full range of types: oscillating knife. pneumatic knife. high-power vibrating knife. circular knife . V cutting knife. drag knife. creasing wheel. dotted line knife. punching. brush. etc.; visual positioning includes: small CCD camera mark point positioning. panoramic camera recognition positioning. projection positioning. etc.The machine adopts blade physical cutting. the cutting section is straight and tidy. no burr. no air pollution. no burnt edge. no fluffy. no discoloration. and the cutting speed is 3-5 times faster than the laser cutting machine.The type of cutter can be adjusted to cut in different ways depending on the thickness of the material.
1. High-precision servo motor. optional Delta or Panasonic brand. waterproof protection level IP67. multi-functional real-time automatic gain adjustment; with super strong vibration suppression function.2. The whole machine is welded with thick-walled seamless steel structure and treated with high-temperature tempering. It is finished by CNC machining center to ensure high precision. no deformation and long service life.3. Magnesium-aluminum alloy vacuum adsorption table. after fluorocarbon PVDF powder spraying. anodic oxidation. hard oxidation and other processes. durable and non-deformable. high flatness. uniform suction. the same power fan suction increased by 30%4. The vacuum adsorption pump adopts an integrated aviation aluminum shell. which is fire-proof. corrosion-resistant. and rust-free. The tube has a built-in silencer sponge. which is cushioning and noise-reducing. and reduces noise by 35%.5. Equipped with infrared induction blocking. anti-collision and emergency stop devices to ensure safety. The cutting area has an intelligent infrared sensor stop function. If there is an obstacle or the hand reaches in during the processing. the machine will automatically pause to ensure safety; there are anti-collision functions on both sides of the beam. and the collision will stop to ensure safety; in addition. the equipment is equipped with an emergency stop. button. and continue cutting in situ after emergency stop.
Product Paramenters
Model | RT-D2516/RT-S2516 |
working area | 1600*2500MM |
Machine size | 3450×2300×1250MM |
Rated power | 9kw |
Fixed model | Flated working table .auto feeding table |
Multifunctional head | Swiss imported knife: with vibration full cutting. vibration half cutting and cursor location function. |
Safety device | Using infrared sensors. responsive. safe and reliable. |
translational velocity | 800-2000mm/s |
Cutting thickness | 200-800mm/s(according to different cutting materials) |
Cutting materials | Leather. all kinds of clothing flexible material. Sponge composite leather. PVC sheet. soft glass. Silicon. rubber. carbon fiber |
Repeated accuracy | ≤0.1mm |
Transmission system | imported (Digital servo motor. linear guide. synchronous belt. ball screw) |
Instruction system | HP-GL compatible format |
Voltage | 380V±10% |
Other configuration | Delta servo motor. Germany imported conveyor belt. vacuum table. auto feeding. Taiwan Hiwin rail. 7.5kw vacuum pump |
Product configuration
Touch screen control panel
·multiple language supported
·easy to operate
Optional serve motor
·made in China
·made in Japan
Aluminum air box platform
·Integrated box adsorption platform. higher adsorption stability
·Split box supported. convenient for transportation and installation
Auto typesetting software
·Automatic typesetting to reduce materia
·Easy to operation. supports PLT.DXF. AI and other formats file for cutting
The oscillating knife can be used alone to cut cardboard. honeycomb cardboard. etc.
It can be used with a creasing wheel to make cartons. and the V-cutting knife can be used for slotting.
Tools and Applications
Applicable materials: leather. fabric. textile. cardboard. plastic box. fiberglass. corrugated cardboard. sticker. film. foam board. rubber. cloth. gasket material. clothing cloth. shoe material. luggage material. non-woven fabric. carpet. sponge . PU. EVA. XPE. PVC. PP. PE. PTFE. ETFE and composite materials. Widely used in soft home furnishings. automotive interiors. carpets and floor mats. packaging. bags. shoe materials. clothing. graphic advertising and printing. sports and outdoor products. sealing pads. composite materials and other industries.
Customer Photos
Why Choose Us
Service:
1. Pre-sales service——professional technical consultationA. Free sample making For free sample making/testing. please send your samples or product CAD drawings to our company in China. Buy after testing.B. Perfect solution design According to customers' product processing requirements. we can design unique solutions for customers. supporting higher manufacturing efficiency and better processing quality.2. After sales service – professional qualification and trainingWe will provide some parts for free for the first year. The buyer needs to pay for the shipping cost of the parts. Users need to send us the broken picture. then we will send the parts they need.B. In the first year. if buyers need our engineers to come to the local area to solve machine problems that they cannot solve by themselves; we will send our engineers for free. The buyer needs to pay for the engineer's local air tickets. accommodation and meals.C. If buyers need help with any technical issues. we will provide service by email and phone.3. Installation and technical training includeIf necessary. we will send engineers to the customer's factory for local training and installation. which is free of charge. The buyer shall pay for the accommodation and meals of the local engineer.Timely gold service. response to technical support within 24 hours. let you feel at ease.4. Customer-centric maintenance cost control guideA. The supply of accessories is timely. we produce according to the order. more than 30 sets of accessories in stock. guarantee the order delivery and repair.B. Relieve customers' worries about large equipment services; supply parts at bare cost.5. Sales service management systemStandardized service management system. including: customer contact management. customer troubleshooting management. regular maintenance of customer equipment. inspection management. customer file management and parts review. etc.
Company Profile
Realtop Machinery (Jinan) Co..Ltd
Built in 2005. Realtop Machinery (Jinan) Co..Ltd is located in Shandong Province. China. covering an area of more than 20.000 square meters. It is one of the most advanced flexible materials cutting machine manufacturers in China. We have rich experience and enthusiastic design team and strong core factory.As a high-tech enterprise specializing in R&D. production. sales and service of CNC cutting equipment. Realtop CNC Group Company has a group of top talents with rich experience in development and application. With more than 13 years experience. we are focus on digital cutting machines for leather. paper. stickers. foam. carpet and many other flexible materials cutting.RealTop CNC – Always your best solution provider for Cutting and Engraving CNC Machines. And Your visit to our factory is always highly welcomed here.
FAQ
1: What professional advice can you give me when I need to buy REALTOP digital cutting machine?Please tell us what material you are cutting and the dimensions of the material (width and length). We will recommend a suitable model for you based on your material texture and size.If you can send us some trial cutting materials. we will record the cutting video for your reference. welcome to visit our company and factory if possible. 2: What materials can your machine cut?REALTOP digital cutting machine can cut different kinds of soft materials. Used in different industries such as shoes. bags. clothing. cartons. composite materials. automobiles. and home furnishings.
3: How to use the machine? And what after-sales services can your company provide?If you purchase our machine. we will provide free installation and training. We provide one year free warranty at home and abroad. We provide machine manual and software manual instructions for each machine. as well as videos for your reference and 24-hour online technical support. All this support is free until you are fluent in operating the machine.
4: What languages does the software system support?The menu is available in English. Russian. Italian. Chinese. etc. Special languages can be customized.
5: How thick can your machine cut?Our machine can choose different types of cutting tool heads according to the thickness of your different materials to achieve cutting of various materials with different thicknesses. The cutting thickness of the machine is ≤100mm (varies with the material).
6: This is my first time using this machine. Is it easy to operate?We will send you English manual and instruction video. which can teach you how to operate the machine. If you're still having trouble learning how to use it. we can chat by phone. email. or other contact method. Problems caused by incorrect operation will also be well solved.
