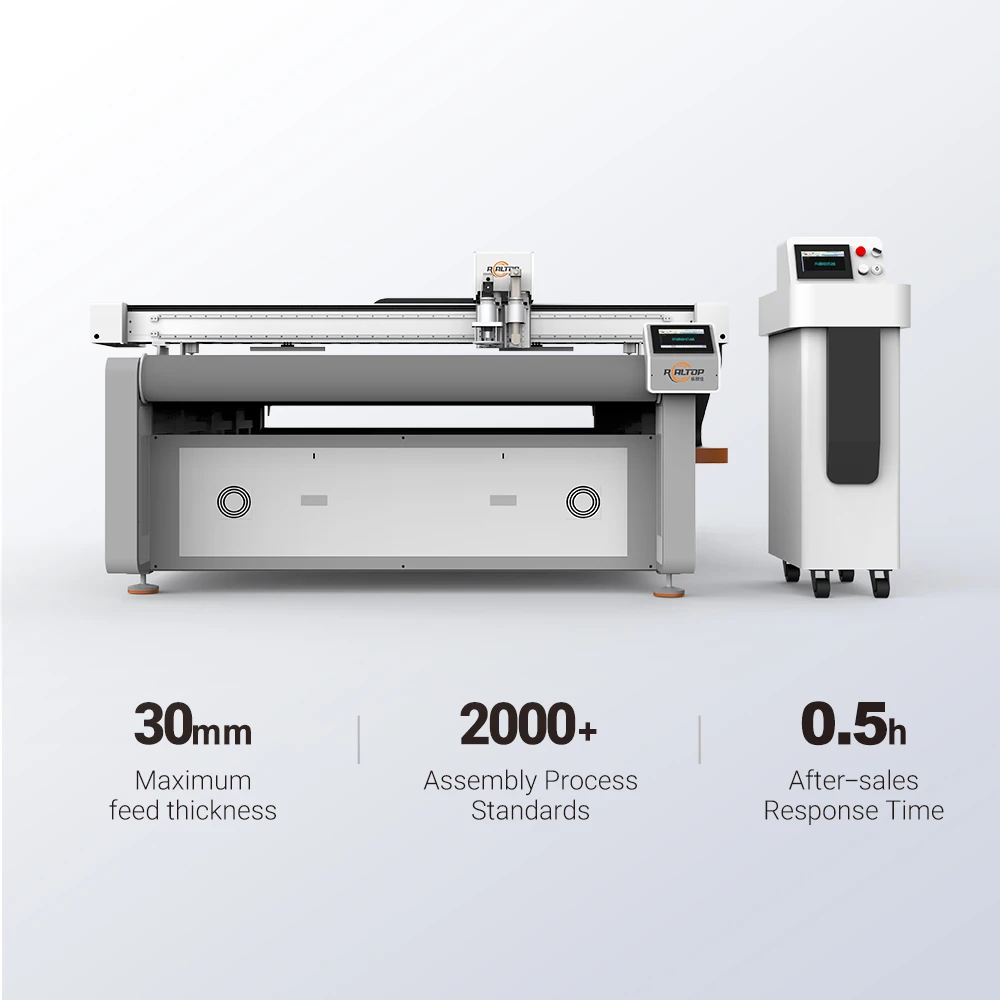

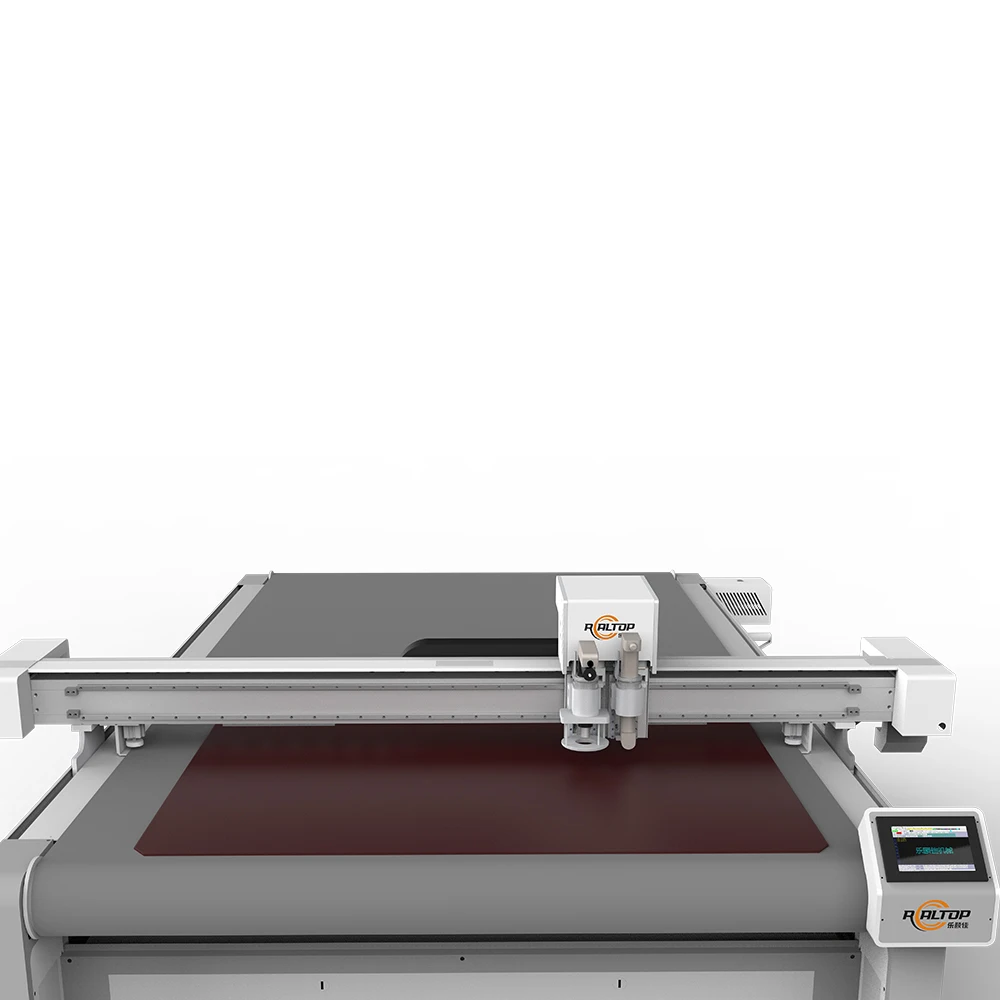

High Quality 2026 Auto-Feeding Oscillating Knife CNC Plotter
$8,000.00
Product Introduction
High Quality Auto-Feeding Oscillating Knife CNC Cutting Plotter 2026, ideal for precise cutting tasks with automated feeding. Perfect for various materials in manufacturing.
Key Specifications
| Model | 2026 |
| Type | Auto-Feeding Oscillating Knife CNC Cutting Plotter |
| model number |
RT-S2516 ,RT-S2516v ,RT-S2520 ,RT-S3022 |
|---|---|
| working area |
2500*1600mm ,2500*2000mm ,3000*2200mm |
Description
Related Products

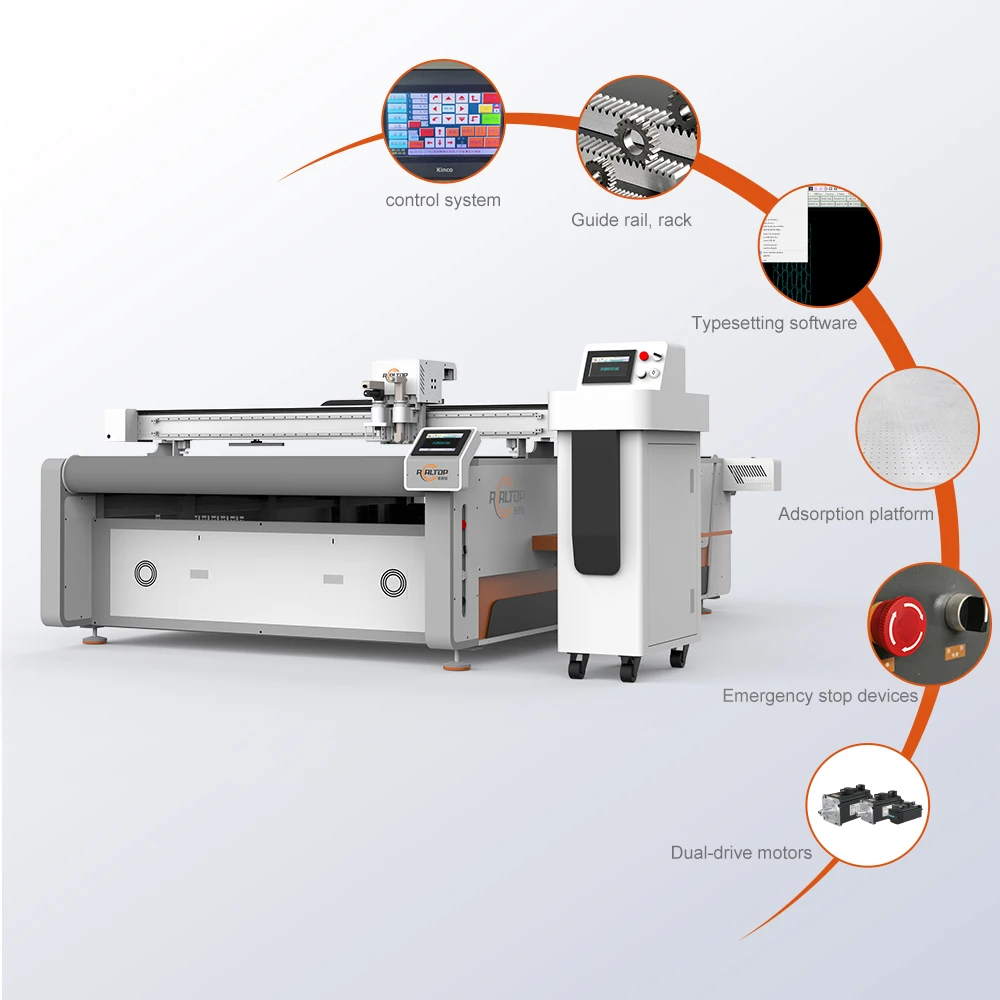

Product description
Cutting tools
Interchangeable cutting knife handle a wide range of materials.
Control panel
PLC control panel with an intuitive interface and optional display languages. Plus dedicated packaging box structure design software.
Adsorption platform
Aluminum bellows vacuum table delivers powerful vacuum across the entire surface. thanks to its excellent seal and high flatness.
Serve motors
Multiple servo drive options available. including brands like Panasonic. Delta. and Dorna.
Vacuum pump
Custom high-efficiency vacuum pump. integrally cast from aerospace-grade aluminum. reduces energy use by 30%
Machine frame
Heavy-duty frame with precision-ground surface ensures exceptional stability and long-lasting durability.
Advantages in Packaging Manufacturing
Oscillating Knife Cutting Machine utilizes ultra-high-frequency vibration technology to achieve "cold cutting" of packaging material through rapid micro-amplitude oscillations. It offers the following advantages during cutting:
1. Replacing expensive die-cut molds with digital files. addressing the economic constraints of small-batch and customized production.
2. High precision and powerful complex pattern processing capabilities unleash the creative possibilities in packaging design.
3. Extensive material adaptability meets diverse packaging requirements.
4. User-friendly operation. high automation. and fast job changeover enhance production efficiency and responsiveness.
5. Clean. safe. and environmentally friendly operations contribute to an improved working environment.
6. Significantly reducing prototyping costs and cycles accelerates product time-to-market
1. Replacing expensive die-cut molds with digital files. addressing the economic constraints of small-batch and customized production.
2. High precision and powerful complex pattern processing capabilities unleash the creative possibilities in packaging design.
3. Extensive material adaptability meets diverse packaging requirements.
4. User-friendly operation. high automation. and fast job changeover enhance production efficiency and responsiveness.
5. Clean. safe. and environmentally friendly operations contribute to an improved working environment.
6. Significantly reducing prototyping costs and cycles accelerates product time-to-market
Product Parameters
Model | 1625 | ||||||
Cutting area | 1600*2500mm | ||||||
Tools avilable | Oscillating knife. Driven rotary knife. Creasing wheel. Kiss cutting tool. Pneumatic knife. Milling tool. V groove knife. CCD camera etc. | ||||||
Applicable Materials | Fabric. Cardboard. Carton. Mats. PVC. EVA. Leather. Acrylic. Foam. PTFE. Rubber etc. | ||||||
Cutting speed | 0-1500 mm/s | ||||||
Cutting thickness | ≤ 40mm | ||||||
Cutting accuracy | ±0.1 mm | ||||||
Vacuum pump | 9KW | ||||||
Voltage | 110V. 220V. 380V | ||||||
Profile format | PLT. DXF. AI. PDF etc. | ||||||
Safety device | Infrared sensor device and emergency stop device | ||||||
Machine size | 3300*2100*1350 mm | ||||||
Packing size | 3400*2400*1600 mm | ||||||
Application
Oscillating knife cutters exhibit excellent adaptability to a wide range of materials commonly used in the packaging industry. including but not limited to:
* Corrugated cardboard of various weights and ply counts (e.g.. E-flute. B-flute. BC-flute).
* Greyboard. cardstock. art paper. specialty paper.
* EVA foam. EPE foam (expanded polyethylene). Coroplast. PU foam (polyurethane foam). foam materials.
* Rubber mats. velvet/fleece fabric. non-woven fabric.
* Thin plastic sheets. PVC. PET.
* Leather. synthetic leather.
* Even some composite materials and adhesive-backed materials.
* Corrugated cardboard of various weights and ply counts (e.g.. E-flute. B-flute. BC-flute).
* Greyboard. cardstock. art paper. specialty paper.
* EVA foam. EPE foam (expanded polyethylene). Coroplast. PU foam (polyurethane foam). foam materials.
* Rubber mats. velvet/fleece fabric. non-woven fabric.
* Thin plastic sheets. PVC. PET.
* Leather. synthetic leather.
* Even some composite materials and adhesive-backed materials.
Customer Photos
Certifications
FAQ
1: What professional advice can you give me when I need to buy REALTOP digital cutting machine?Please tell us what material you are cutting and the dimensions of the material (width and length). We will recommend a suitable model for you based on your material texture and size.If you can send us some trial cutting materials. we will record the cutting video for your reference. welcome to visit our company and factory if possible.
2: What materials can your machine cut?REALTOP digital cutting machine can cut different kinds of soft materials. Used in different industries such as shoes. bags. clothing. cartons. composite materials. automobiles. and home furnishings.3: How to use the machine? And what after-sales services can your company provide?If you purchase our machine. we will provide free installation and training. We provide machine manual and software manual instructions for each machine. as well as videos for your reference and 24-hour online technical support. All this support is free until you are fluent in operating the machine.4: What languages does the software system support?Available in English. Russian. Italian. Chinese. etc. Special languages can be customized.
