Realtop VK-2026 Vibrating Knife Fabric Cutter

Realtop VK-2026 Vibrating Knife Fabric Cutter - Image 3

Realtop VK-2026 Vibrating Knife Fabric Cutter - Image 4

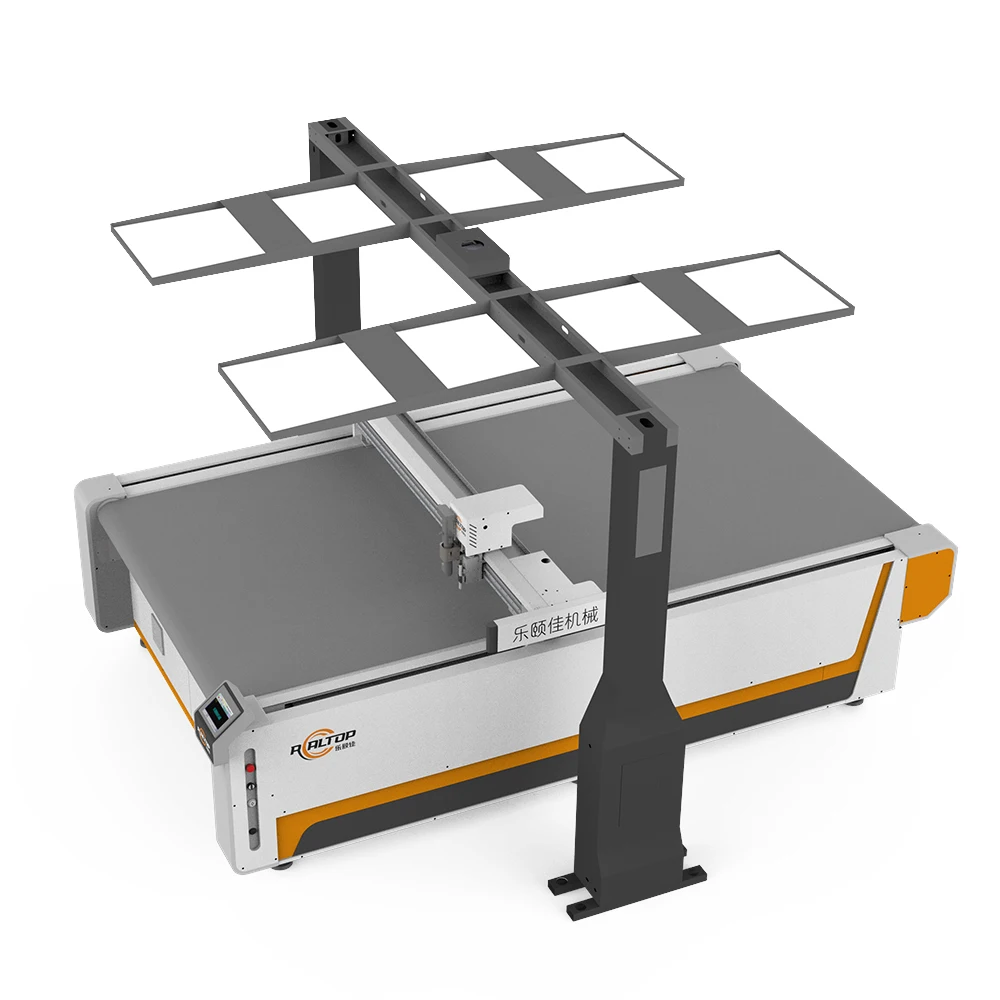

Realtop VK-2026 Vibrating Knife Fabric Cutter

Name: Realtop VK-2026 Vibrating Knife Fabric Cutter
SKU: Realtop Customized Vibrating Knife Cloth I-33724438
Availability: InStock

$46,312.57

Product Introduction

Realtop VK-2026 Vibrating Knife Fabric Cutter is a professional cutting solution designed for efficient fabric processing, ideal for various textile applications.

Product Parameters

Model	VK-2026
Type	Vibrating Knife Fabric Cutter

model number	RT-S2516 , RT-S2516v , RT-S2520 , RT-S3022
working area	25001600mm , 25002000mm , 3000*2200mm

model number

working area

Clear

Add to compare

Add to wishlist

SKU: Realtop Customized Vibrating Knife Cloth I-33724438 Category: Cloth CNC Cutting Machine

Description

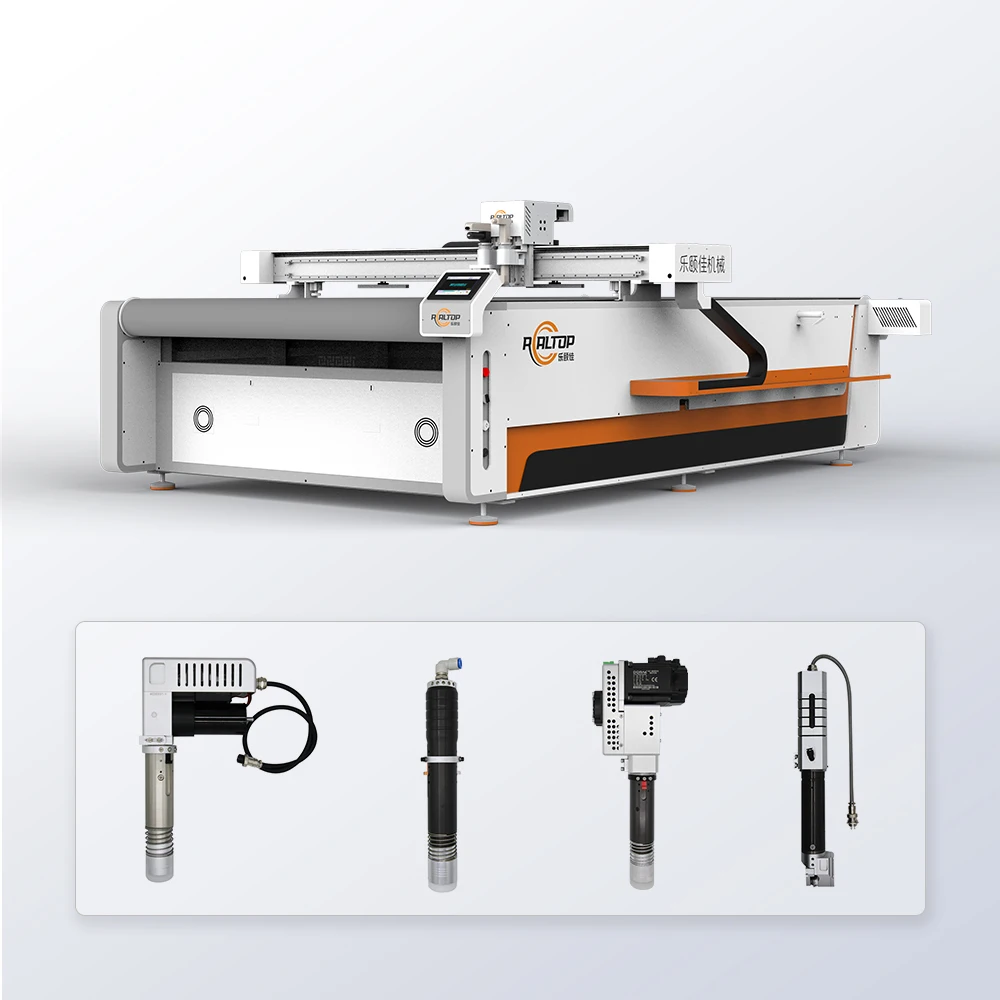

Cutting tools

Interchangeable cutting knife handle a wide range of materials.

Control panel

PLC control panel with an intuitive interface and optional display languages. Plus dedicated packaging box structure design software.

Adsorption platform

Aluminum bellows vacuum table delivers powerful vacuum across the entire surface. thanks to its excellent seal and high flatness.

Serve motors

Multiple servo drive options available. including brands like Panasonic. Delta. and Dorna.

Vacuum pump

Custom high-efficiency vacuum pump. integrally cast from aerospace-grade aluminum. reduces energy use by 30%

Machine frame

Heavy-duty frame with precision-ground surface ensures exceptional stability and long-lasting durability.

Advantages

Advantages in Cutting Textile Fabrics

1 . Significantly Enhanced Cutting Efficiency✳Cutting speeds reach 1200–2000 mm/s. boosting productivity to 5–6 times that of manual cutting.✳Supports single-pass multi-layer cutting (up to 30–50 mm thickness). drastically reducing repetitive operations.

2.High Precision & Material Utilization✳Repeat positioning accuracy ± 0.1 mm. delivering smooth edges requiring no secondary trimming.✳Intelligent nesting systems automatically avoid defects and optimize layouts. saving over 15% fabric—ideal for high-end customization.3.Eco-Friendly & Wide Adaptability✳Cold cutting technology eliminates scorching. dark edges. and toxic fumes caused by lasers.✳Compatible with 30+ flexible materials (knits. wovens. plush. leather. foam. etc.). handling thicknesses from 0.1–50 mm.4.Intelligent Operation & Low Running Costs✳Supports DXF/PLT/AI/PDF file import for automatic path generation. eliminating die development and reducing mold costs.✳Single-operator control minimizes labor dependency; maintenance is simple (low blade replacement cost).

Product Parameters

Model	1625
Cutting area	1600*2500mm
Tools avilable	Oscillating knife. Driven rotary knife. Creasing wheel. Kiss cutting tool. Pneumatic knife. Milling tool. V groove knife etc.
Applicable Materials	Fabric. Cardboard. Carton. Mats. PVC. EVA. Leather. Acrylic. Foam. PTFE. Rubber etc.
Cutting speed	0-2000 mm/s
Cutting thickness	≤ 30mm
Cutting accuracy	±0.1 mm
Vacuum pump	9KW
Voltage	110V. 220V. 380V
Profile format	PLT. DXF. AI. PDF etc.
Safety device	Infrared sensor device and emergency stop device
Machine size	330021001350 mm
Packing size	340024001600 mm

Application

Typical Industry Applications:Apparel Manufacturing: Efficiently cuts suits. knitwear. lace. and complex fabrics; supports pattern-matching layouts to enhance premium garment quality.Automotive Interiors: Precision cutting of seat fabrics. carpets. and PVC mats with burr-free edges. meeting automotive industry standards.Home Textiles: Multi-layer cutting for sofa fabrics. curtains. and rugs; strong vacuum adsorption prevents material shifting.Composite Material Processing: Damage-free cutting of carbon fiber prepreg. aramid. and specialty materials. avoiding delamination or thermal deformation.

Customer Photos

Certifications

FAQ

1: What professional advice can you give me when I need to buy REALTOP digital cutting machine?Please tell us what material you are cutting and the dimensions of the material (width and length). We will recommend a suitable model for you based on your material texture and size.If you can send us some trial cutting materials. we will record the cutting video for your reference. welcome to visit our company and factory if possible.

2: What materials can your machine cut?REALTOP digital cutting machine can cut different kinds of soft materials. Used in different industries such as shoes. bags. clothing. cartons. composite materials. automobiles. and home furnishings.3: How to use the machine? And what after-sales services can your company provide?If you purchase our machine. we will provide free installation and training. We provide machine manual and software manual instructions for each machine. as well as videos for your reference and 24-hour online technical support. All this support is free until you are fluent in operating the machine.4: What languages does the software system support?Available in English. Russian. Italian. Chinese. etc. Special languages can be customized.
